What is a Dual Motion Shale Shaker?
Dual Motion Shale Shaker is a high-performance solids control device used in drilling operations. It features two types of motion – linear and elliptical – allowing for more efficient separation of solids from drilling fluids. This technology improves drilling efficiency, reduces mud loss, and enhances the overall safety and reliability of drilling operations.
How does a Dual Motion Shale Shaker work?
The Dual Motion Shale Shaker works by combining linear vibration, which efficiently moves solids off the screen, and elliptical vibration, which prevents screen blinding and improves particle separation. The dual motion ensures maximum solids removal while maintaining drilling fluid quality. Advanced designs often include adjustable vibration amplitude and screen tension for different drilling conditions.
What are the advantages of Dual Motion Shale Shakers?
- Higher Solids Removal Efficiency: Dual motion design captures more fine solids than traditional single-motion shakers.
- Improved Drilling Fluid Quality: Reduces mud contamination and extends the lifecycle of drilling fluids.
- Reduced Maintenance: Elliptical motion prevents screen blinding and reduces the frequency of screen replacement.
- Enhanced Safety: Stable operation and reduced vibration noise improve operational safety.
- Energy Efficiency: Optimized motor design consumes less power without compromising performance.
| Model |
TRPZS584 |
TRPZS583 |
| Vibration Motion |
Dual Motion |
Dual Motion |
| Treatment Capacity |
140m³/h |
110m³/h |
| Motor Power |
1.72kw+1.72kw+0.75kw |
1.5kw+1.5kw+0.4kw |
| Screen Specs. |
(585x1165mm) x4 |
(585x1165mm)x3 |
| Screen Area |
2.7m² |
2.0m² |
| Vibration Strength |
≤8.5G(可调) |
≤8.5G (可调) |
| Double Amplitude |
7mm |
7mm |
| Deck Adjustment |
-3°~+3° |
-3°~+3° |
| Ex Standard |
ExdllBt4 /IECEX /A-TEX |
| Dimension |
2600x1645x1380mm |
2100x1645x1380mm |
| Weight |
1700kg |
1500kg |
Where are Dual Motion Shale Shakers used?
Dual Motion Shale Shakers are widely used in:
- Oil & gas drilling rigs
- Offshore drilling platforms
- Geothermal drilling operations
- Mining and tunneling projects
- Any drilling application requiring efficient solids control
How to choose the right Dual Motion Shale Shaker for your project?
When selecting a Dual Motion Shale Shaker, consider:
- Screen Area & Deck Size: Larger areas improve processing capacity.
- Vibration Type & Frequency: Adjustable dual motion allows adaptation to different drilling fluids.
- Material & Build Quality: Stainless steel or corrosion-resistant coatings for offshore and harsh environments.
- Maintenance & Spare Parts Availability: Ensure ease of service and screen replacement.
- Certifications: Compliance with API or ISO standards ensures reliability and quality.
How does Dual Motion technology improve drilling efficiency?
By efficiently removing solids from drilling fluids, Dual Motion Shale Shakers reduce mud recycling time, prevent pump clogging, and maintain optimal fluid density. This leads to smoother drilling operations, less wear on pumps, and lower overall operational costs.
|
|

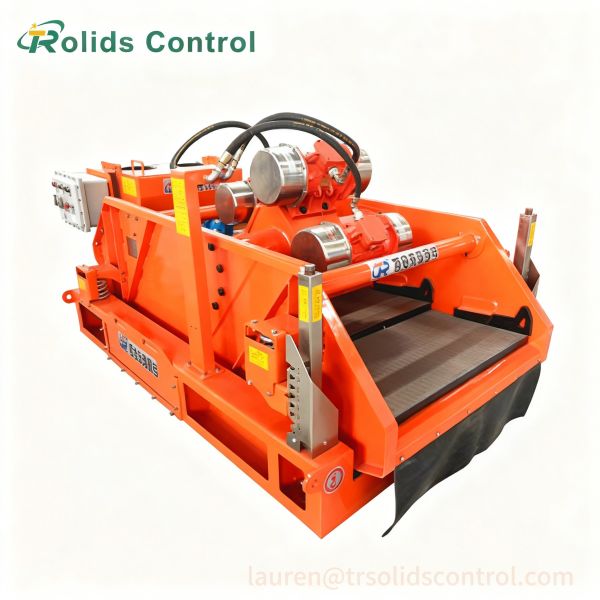

Dual Motion Shale Shaker – High-Efficiency Solids Control Images
|
